Products description

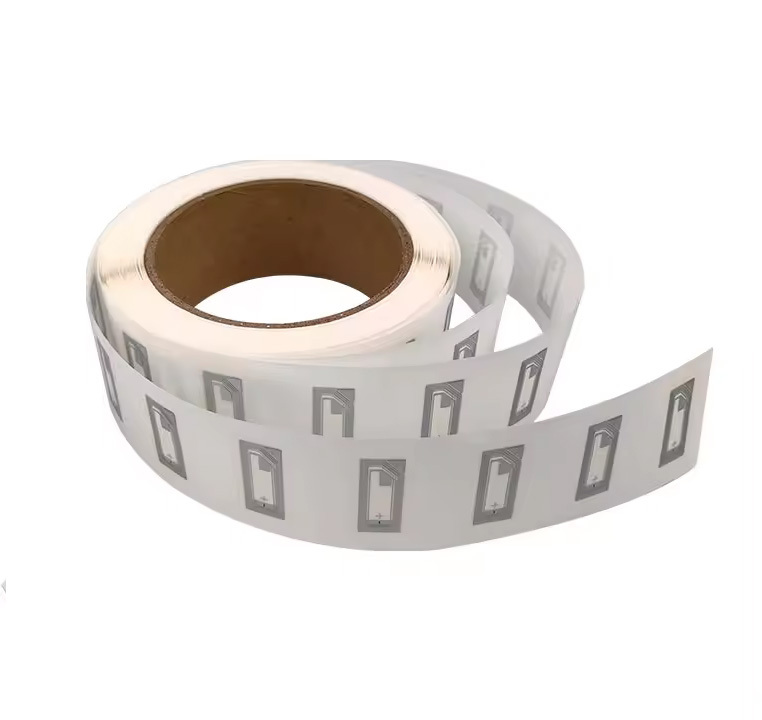

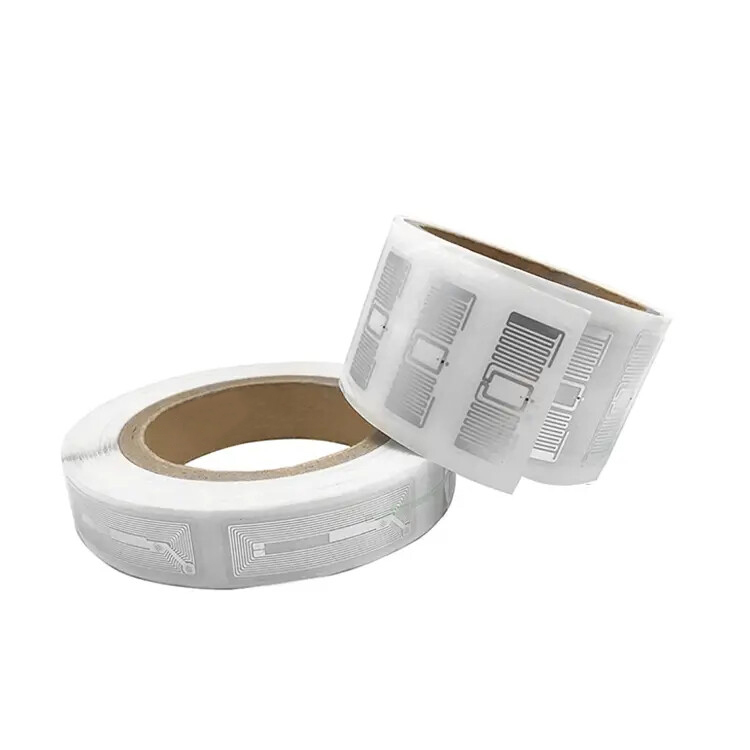

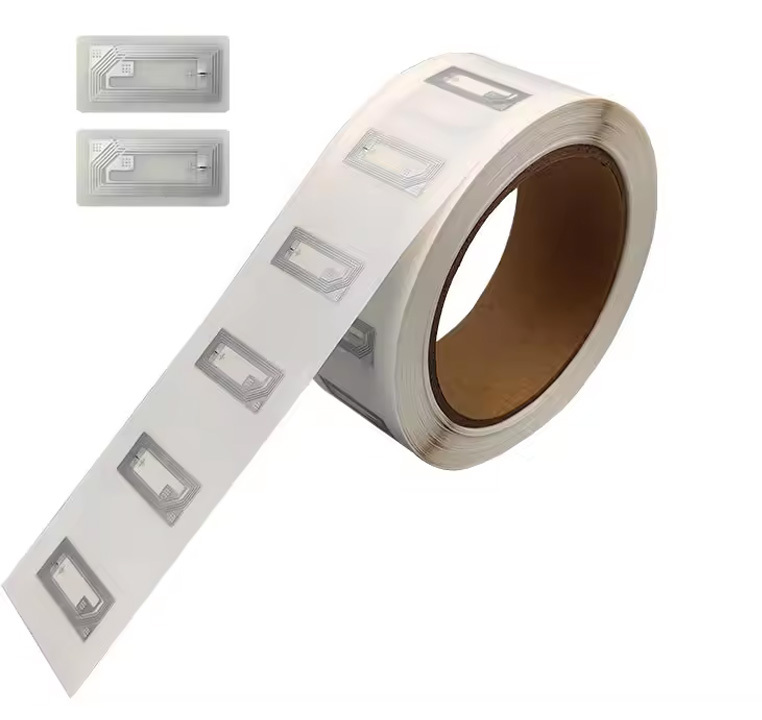

RFID Dry Inlays are described as "Dry" due to their lack of adhesive backing. Dry inlays attach an RFID microchip (IC) and antenna to a material or substrate called a web. These inlays look like they have been laminated and come standard with no adhesive.
Information
product name:UHF dry inlay
chip:U8, R6 , H3 (customized)
protocol :ISO10008-6C
reading distance:1-10M
featur:lightweight
function :assets management
size:70*30mm (customized)
material:PET
keyword:dry inlay
Overview
1. Leading technology of RFID production.
2. Reliable quality with strict QC.
3. Flexible with customized requirements.
4. On time delivery。
Physical Specifications
Name: UHF Dry Inlay with Monza 4QT
Antenna size:68*19mm (Customized)
Product Size:70*21mm (Customized)
Inlay Material:PET
Label product material can be customized: coated paper/PVC/PET...
RF Specifications
Chip: Monza 4QT or customized
Frequency:860-960MHz
Protocol:ISO/IEC 18000-6C
Memory: TID- 96bits EPC-128bits User-512bits
Operating Mode: Passive
IC Life: Write endurance of 100,000 cycles,Data retention of 50 year
Operating Distance: 2-5 meter ( depending on the reader configuration)
Operating temperature:-20°C~+60°C
Personalization:Logo Printing encoding, QR code printing, Barcode printing, Laser printing
Package: 1000pcs/roll, 10 rolls/carton (customized)
Application: Assets Management, Document Management,Drug Inventory Management, Jewelry Management, Smart Retail Management, Laundry Management,Apparel Management, Anti-theft Label, etc.
