HF RFID inlays. High frequency (HF) inlays, tags and labels provide a shorter read range than UHF inlays, tags or labels, depending on the application.
Physical Specifications

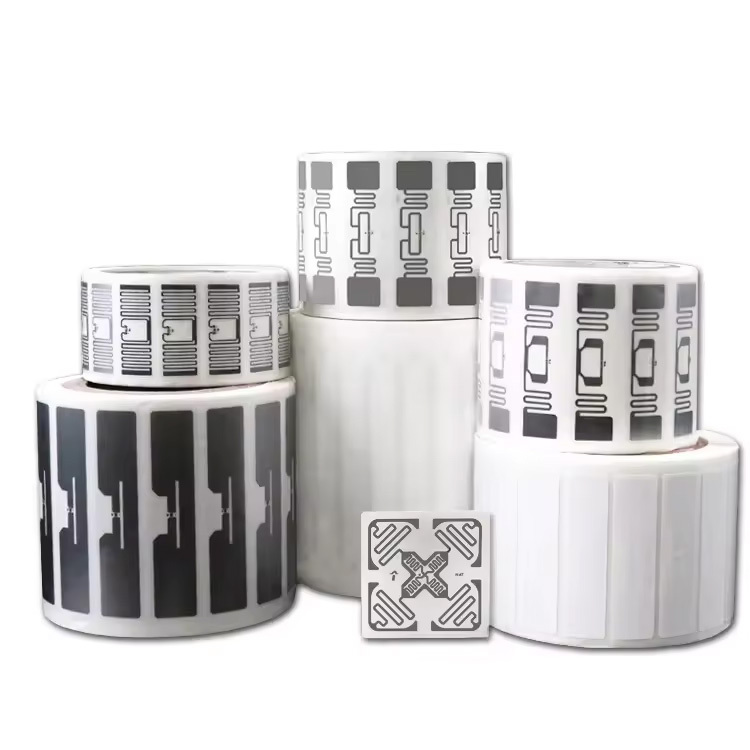

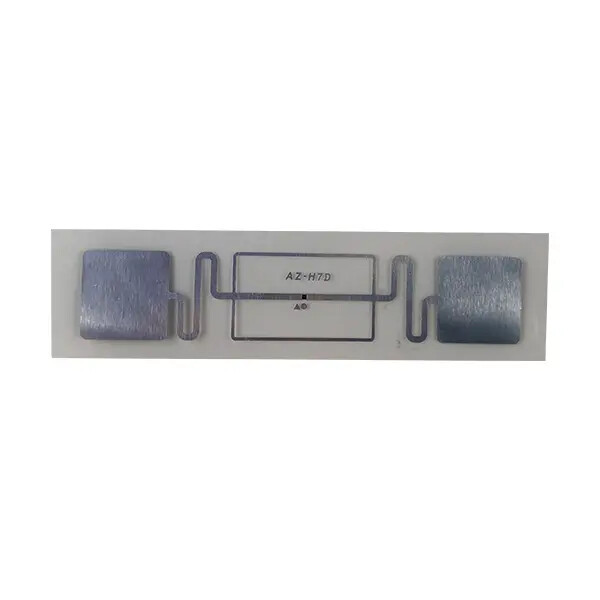

Name: UHF Dry Inlay with Ucode DNA
Antenna size:14*70mm (Customized)
Product Size:16*73mm (Customized)
Inlay Material:PET
Label product material can be customized: coated paper/PVC/PET...
Specifications
Chip: Ucode DNA
Frequency：860-960MHz
Protocol:ISO/IEC 18000-6C
Memory: TID- meterss EPC-224bits User-3072bits
Operating Mode: Passive
IC Life: Write endurance of 100,000 cycles,Data retention of 50 year
Operating Distance: 2-5 meter ( depending on the reader configuration)
Operating temperature:-20°C~+60°C
Personalization:Logo Printing encoding, QR code printing, Barcode printing, Laser printing
Package: 1000pcs/roll, 10 rolls/carton (customized)
Application: Assets Management, Document Management,Drug Inventory Managenment,Unicode Jewelry Management, Smart Retail management, Laundry Management, Apparel Management, Anti-theft Label, Vehicle managenment.
