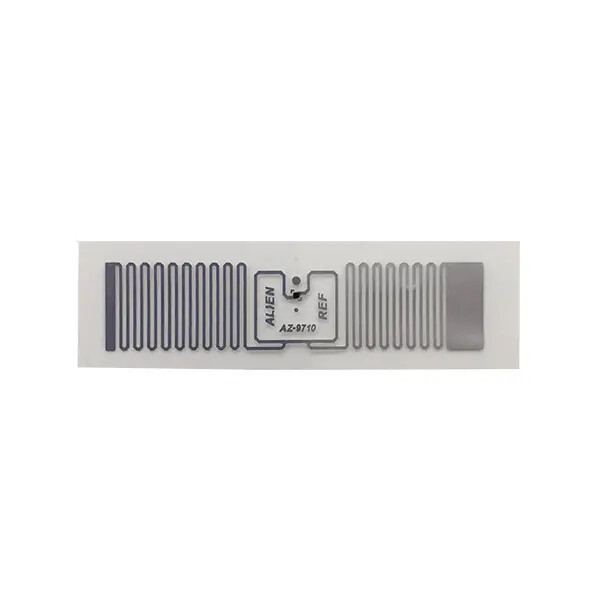

Long Range UHF Dry Inlay With Alien Higgs 4

No.Inlay005
Name: UHF Dry Inlay with Alien H4 Antenna size:10.4*44.5mm (Customized) Product Size:12*46mm (Customized) Inlay Material: PET Label
  • Long Range UHF Dry Inlay With Alien Higgs 4
Description

UHF Tag Alien H4 is global Frequency compliance with EPC Global Class 1 Gen 2 and ISO-18000 6C.



Physical Specifications

Name: UHF Dry Inlay with Alien H4

Antenna size:10.4*44.5mm (Customized)

Product Size:12*46mm (Customized)

Inlay Material: PET

Label product material can be customized: coated paper/PVC/PET...

Specifications

Chip: Alien H4

Frequency:860-960MHz

Protocol:ISO/IEC 18000-6C

Memory: TID- 96bits EPC-128bits User-128bits

Operating Mode: Passive

IC Life: Write endurance of 100,000 cycles, Data retention of 50 year

Operating Distance: 1-4 meters ( depending on the reader configuration)

Operating temperature:-20°C~+60°C

Personalization: Logo Printing encoding, QR code printing, Barcode printing, Laser printing

Package: 1000pcs/roll, 10 rolls/carton (customized)



Application: Assets Management, Document Management, Drug Inventory Management, Jewelry Management, Smart Retail Management, Laundry Management, Apparel Management, Anti-theft Label, etc.
